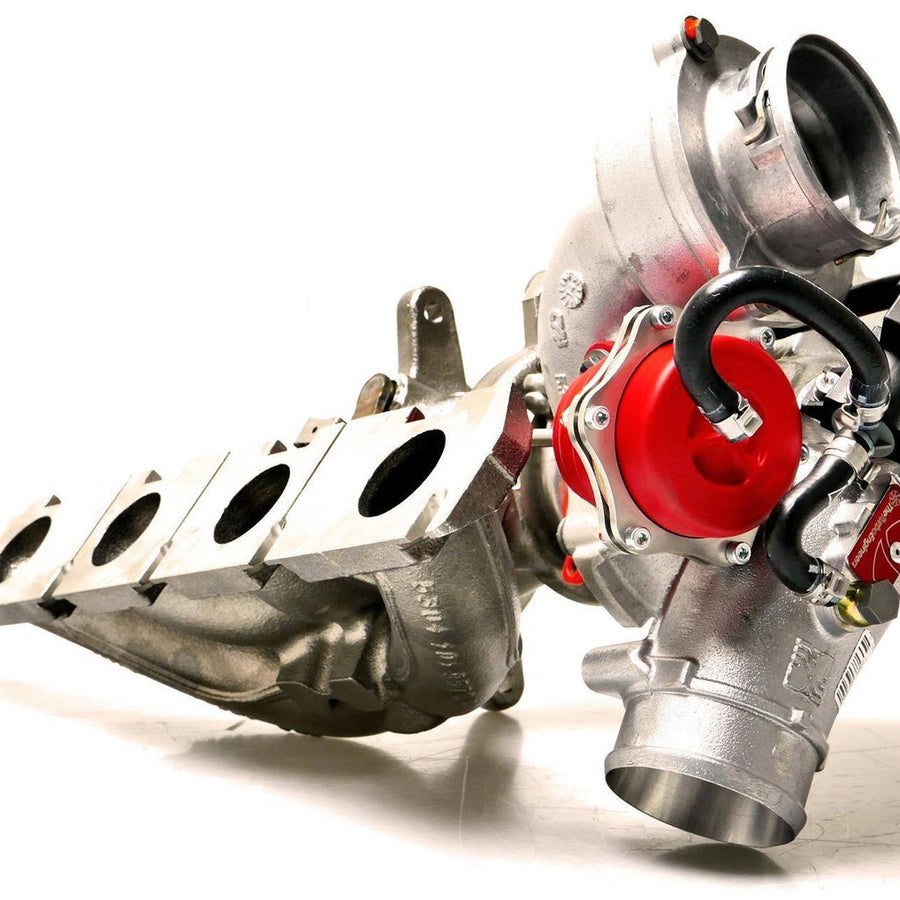

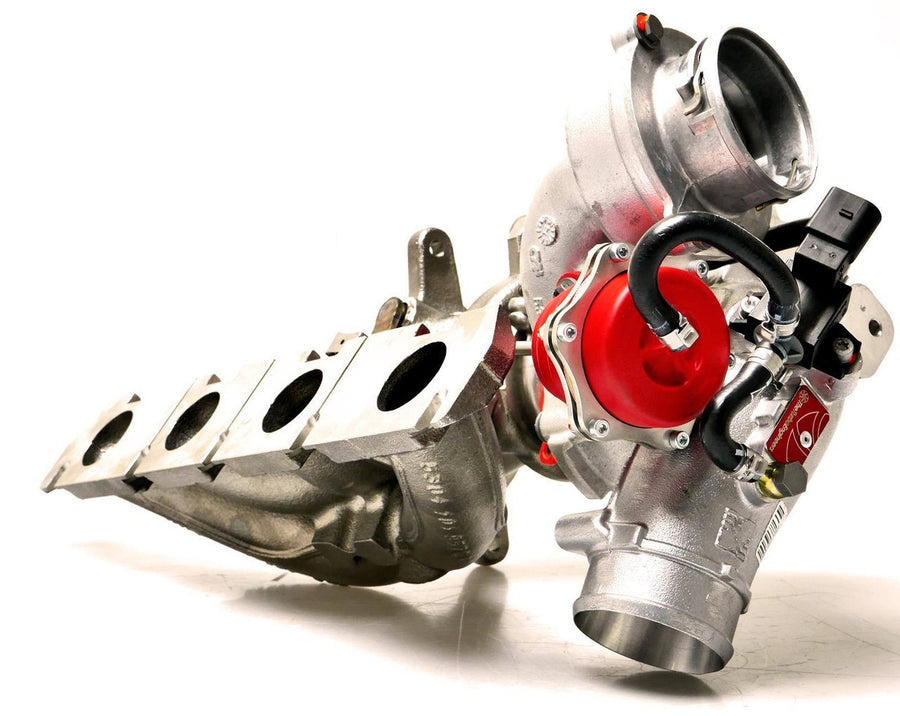

TTE480 Upgrade Performance Turbocharger VAG 2.0 TFSI (S3 8P, TTS, Golf 6 R, ED30, so on)
Welcome to our Ultimate OEM+ Plug & Play Upgrade turbocharger for the 2.0 TFSI range of vehicles. Ultra-Fast response with big turbo power giving the huge area of power under the curve. A true Stage 3 hybrid.
TTE480 begins life as a brand new standard BorgWarner K04-064 turbocharger that we dismantle and then set about upgrading and optimising as engineers to create our ultimate K04 frame hybrid. TTE480 Turbocharger is in our opinion the final step and our pinnacle power stage for the 2.0 TFSI range of vehicles while retaining the OE K04 unit for Plug & Play fitment.
Engineered & Enhanced
The recipe to making a TTE480 starts with a much larger TTE billet compressor wheel, chosen because is highly efficient, new generation type with very thin blades, creating an extremely high flow for comparative size, giving a compressor map that's very wide. The Re-Profiled compressor cover is machined to an optimised tolerance to ensure maximum compressor efficiency is given. Also, the intake pipe is CNC ported to give a smooth transition for the incoming air flow. We fit our TTE CNC K04 silencer delete, we modify the turbo discharge silencer, removing the baffle internals and fitting a new straight through section, removing any restriction and its function as a noise cancelling device, and so improving the flow, giving less surge and enhancing the sound.
A key part of driving the large billet TTE compressor and in turn making this unit produce the huge power advantage over stock and also our 420 upgrade hybrid, is machining and fitting a far larger monster clipped turbine and shaft, while still keeping the k04 core, this is not so easy to do. This turbine gives much lower back pressure and keeps EGT lower compared to stock K04 turbine or TTE420 K16 clipped wheel.
With this TTE stage we have CNC ported the exhaust manifold as standard at the head flange to match and smooth the transition from head to exhaust runner for maximum gas speed and so improving efficiency to the much bigger monster turbine and so driving the compressor harder.
Special TTE developed in-house high-performance motorsport journal bearing system is fitted. Durable at high loads with no loss in transient response.
The actuator used is uprated sprung OE unit, fitted with our reinforced clamps for trouble free operation.
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA is dynamically balanced, but this time depending on application at up to 250,000 RPM in multiple planes using our in-house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with serial numbered balance test result document.
- Genuine BorgWarner Housings & Components
- TTE Billet Highly Efficient Next Gen Compressor Geometry
- Optimised Compressor Cover Machining Clearances
- CNC Port Matched Exhaust Runners (The original VAG Manifold gasket needs enlarging to match the ports on the turbo)
- CNC Optimised modified silencer discharge delete
- CNC Ported Intake Pipe
- TTE Mega Turbine, Clipped & Lightened (Genuine BorgWarner)
- Genuine BorgWarner Uprated & Reinforced Actuator
- Genuine OEM Pierburg N75 Valve
- Special TTE Reinforced Bearing System
- Fitment As Original. Plug & Play
- Dynamically Balanced
- 480PS Proven
- Designed, Machined & Built by TTE in Germany
