Please do not mistake our product for a cheap plumbers rubber bung. Our kit gives you that smooth, clean, OEM+ deleted finish.
You will receive:
1 X Flush fitting wiper delete plug. 1 X Detailed printed fitting instructions. 1 X 15ml Waterproof sealant in a syringe (Black).
Fits many makes and models in the VW & Audi Range
Please contact us if you are unsure this will fit your model of car!
Forge Motorsports Blow Off Valve and Kit for Audi and VW 1.8 and 2.0 TSI
Forge Motorsport is proud to release the latest version of our very popular solenoid driven valve for the 2013-on VAG 1.8 TSI engine (US codes CPKA and CPRA) and 2.0 TSI engine (Euro code CNTA, CHHA, CHHB, CJXB and CJXC;US codes CPLA and CPPA) including Golf MK7 R. This valve is a full replacement atmospheric blow-off valve (i.e. noisy) that integrates seamlessly with the OEM electronics and results in no detriment in performance, and absolutely NO fault codes or check engine lights, which isn’t something that can be said of our competition!
Like our full replacement recirculating valve option, this valve is fully engineered to remedy the failure issues experienced with the OEM solenoid valves when their diaphragm may rupture which results in a boost leak. The later revision OEM valves have a longer lift but ultimately the plastic brittles and in extreme circumstances, parts of the plastic can break off. Our valve uses full billet alloy construction with a piston based internal design that provides for significantly improved reliability over the OEM valves along with lightning fast response. It has also been proven in cars running over 600bhp!
This new valve has a very short overall installed height, which enables fitment of this atmospheric valve into the tight space between the turbo and the inlet hose from the airfilter, older larger valves and sandwich plates will not fit this engine.
In The Box: 1 x FMDVMK7A Valve 1 x Wiring Harness 1 x Solenoid, Bracket, and Screws 1 x Uprated Blue Spring 10 x Cable Ties 1 x 1000mm of 4mm Vacuum Tube 1 x 5mm T Piece 1 x Instructions 1 x Forge Keyring and Sticker
Fits Below Cars
S3 2.0 TSi (8V Chassis)
A4 2.0 TFSI (B9)
TT Mk3 2.0 TSI 2015 Onwards
TTS Mk3 2015 Onwards
Octavia VRS 2.0 Tsi 2013 Onwards
Leon Cupra 280R
Golf Mk7 Gti
Polo GTI 1.8T 2015 Onwards
Product code: FMDVMK7A
V2 1 GALLON WATER/METHANOL INJECTION KIT
Water/methanol injection for gas engines is a proven means for effectively reducing engine inlet air temperatures and suppressing harmful detonation on forced induction and high performance naturally aspirated race engines. This allows racers to reliably increase boost and advance ignition timing—without using high-octane racing fuel—for power gains of up to 20%. AEM’s Water/Methanol Injection Systems utilize the most robust hardware combined with more advanced features than any other comparably priced water/methanol system.
The on-demand progressive controller in AEM’s Boost Dependent PN30-3300 Water/Methanol Injection kit bases injection flow on manifold pressure using an on-board MAP sensor (up to 35 PSI of boost) to ensure the proper amount of water/methanol injection at all points along an engine’s power curve.
AEM’s engineers spent extensive time developing the controller’s flow control strategy for a more linear flow output delivery. This means that the flow delivery better matches an engine’s need for water/methanol injection, which further optimizes charge air cooling and detonation control.
The new controller design features large, turn-resistant knobs and larger numbering to easily set accurate start and full activation points, with covered status LED and test buttons for added splash resistance. A plug is integrated into the controller housing for mating to the redesigned wiring harness’s positive-lock connector. The Boost Dependent controller housing has a molded-in, barbed nipple to accept a boost hose and a wiring legend on the back, integrated fuse and molded mounting tabs.
AEM’s Boost Dependent Water/Methanol Injection kit’s wiring harness is terminated with a positive-lock connector on one end and has color-coded wires to ease installation. Both the power and ground wires for the pump are included in the harness which simplifies the wiring process and eliminates any chance of the pump accidentally activating from a short in the system. An additional wire is included for adding an optional on/off solenoid to stop fluid flow when the system is inactive.
AEM’s Boost Dependent, PN 30-3300 gasoline Water/Methanol Injection System’s compact 1 gallon tank includes a high tech conductive low fluid level indicator with a positive lock connector and color matched wires to the wiring harness.
Boost Dependent controller features on-board MAP sensor with large adjustment knobs, integrated plug for harness connection, integrated fuse, covered status light and test button for enhanced splash resistance and mounting tabs
Wiring harness is terminated with a positive-lock connector on one end with color-coded wires to ease installation, power and ground wires for the pump and additional wire for optional on/off fluid solenoid
“Boost Safe” failsafe output included (for complete failsafe under all conditions, see Water/Methanol Failsafe Device)
Internally-bypassed water/methanol injection pump does not cycle on an off and provides quiet, smooth operation. It features robust construction including integral hose fittings, EPDM seals and a Santoprene diaphragm that provides consistent and reliable fluid delivery
Precision-machined billet-aluminum injector with integral check valve
Three interchangeable injector nozzles to cover a wide variety of HP levels (250cc/min, 500 cc/min & 1,000cc/min)
1 gallon tank(10" x 8.5" x 4.25") with integral conductive low-fluid sensor and positive lock connector (tank-less water/methanol gas systems available, AEM Part #30-3302 includes controller with on-board 35 PSI MAP sensor)
20 feet of Nylon injection tubing included
LED dash light for system status and low fluid warning
Important Safety Notice Regarding Methanol
AEM strongly recommends that users never exceed a 50% methanol concentration when using any AEM Water Methanol system or component.
All AEM Water/Methanol injection systems and components (pump, lines, fittings, filter, flow sensor, tank, and nozzles) are 100% chemically compatible with methanol. However, for safety reasons we strongly recommend that users never use more than a 50% methanol concentration in our systems.
Methanol is a toxic and highly flammable chemical. 100% Methanol ignites easily and burns vigorously with an almost undetectable flame. Methanol can be absorbed through the skin and even small amounts can cause blindness or even death. Using this fluid at high pressures, without dilution, in an under-hood environment with nylon lines and push-to-connect fittings is very unsafe. The performance advantages of using greater than 50% methanol concentrations are small, if they exist at all. However, the safety issues are very real and far outweigh any perceived benefit of running high concentrations of methanol.
Improper installation and/or adjustment of this product can result in major engine/vehicle damage. For technical assistance visit our forum or visit our dealer locator to find a professional installer/tuner near you.
Note: AEM holds no responsibility for any engine damage or personal injury that results from the misuse of this product, including but not limited to injury or death caused by the mishandling of methanol.
Note: FOR OPTIMUM RESULTS, ALL WATER/METHANOL INJECTION SYSTEMS AND GAUGES SHOULD BE RUN WITH AN AEM INLINE FILTER (AEM PART #30-3003)
AEM High-Flow Low-Current Water/Methanol Solenoid (Shut off Valve)
AEM’s stainless steel Water/Methanol Injection Solenoid (PN 30-3326) eliminates any chance of water/methanol flow into the inlet when the WMI system is not engaged. This affordable water/methanol injection accessory features high flow capability (3,600cc/min) and an impressively low current draw of only 0.75A that does not require the use of an additional relay.
The valve body features include 1/8” NPT ports with included push-to-lock ¼” hose fittings for easy connection and EPDM seals that stand up to corrosion for years of reliable use. It’s an inexpensive insurance policy to protect your high performance engine regardless of the brand of water/methanol injection system you are using!
High flow rating (3600 cc/min @ 150 psi)
Low current draw (0.75A @ 13.5V)
No additional relay required
Standard 1/8”- 27 NPT inlet/outlet with included ¼” push-to-lock hose fittings for easy installation
Fast response time
Tested to 200 PSI
Stainless steel enclosure and internals with EPDM seals for corrosion resistance
Flying leads simplify connection with user desired connector

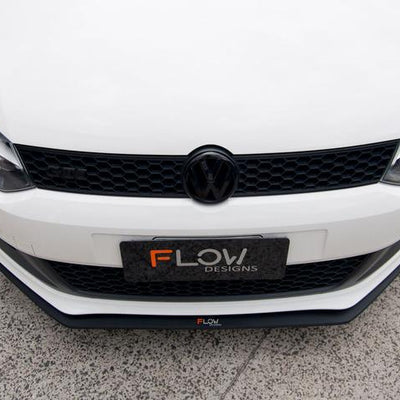

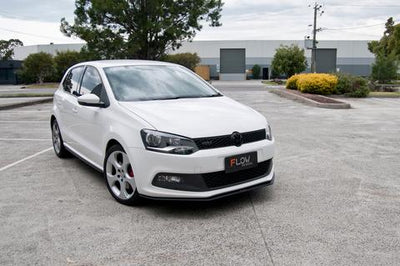

Flow Designs VW 6R POLO GTI FRONT SPLITTER
Volkswagen 6R Polo GTI Front Splitter
The Flow Designs front splitter for Volkswagen Polo GTI (6R) fits perfectly to the standard bumper for a hassle-free, easy installation. Made from a 10mm thick polyethylene material, the front splitter is hand polished to satin black & will not crack as it is both impact & chip resistant.
2 Flow Designs Stickers
10mm thick polyethylene composite, bevelled edges
Hand polished satin black
Why do we use Polyethylene Composite for Flow Designs Splitters?
Strong, impact resistant, doesn't corrode or chip, and has excellent abrasion resistance (say… from scraping on driveways and road all the time?)
Carbon Fibre is better isn’t it?
As strong and light as Carbon fibre is, it CRACKS on impact or when under load and/or stress. Clear coat will eventually fades & cracks and become undesirable.
